The Alice Smith School Primary Campus Gym Hall With LED Stage Lighting System

The Alice Smith School Primary Campus located in Jalan Bellamy recently upgrade the school facility which include the Gym Hall.

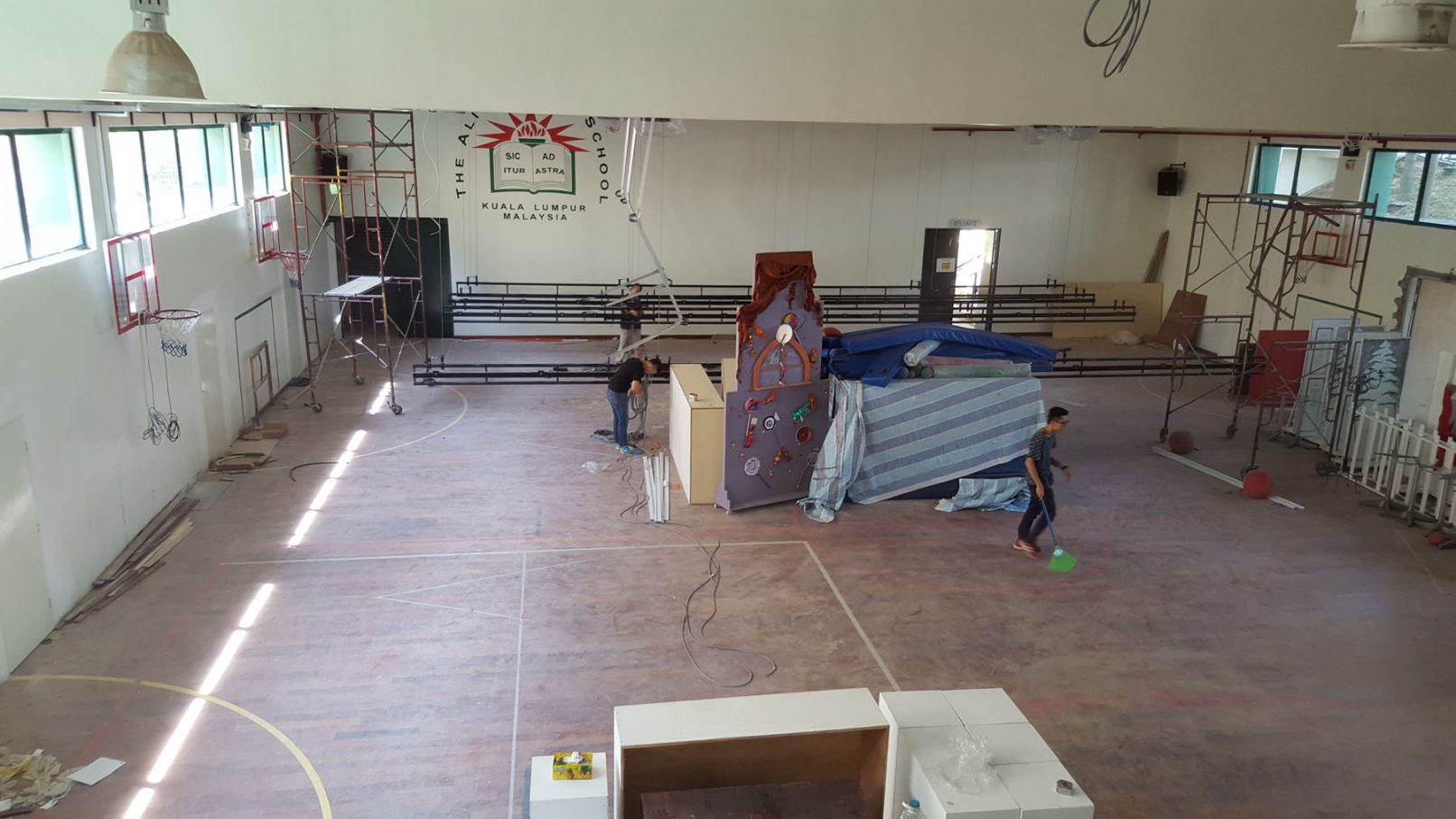

The Gym Hall or the Multipurpose Hall needed a new lighting system to cater for function and program for the school. The School turned to Artistic Controls to ask us to supply and install Motorised Lighting Bar, LED Stage Lighting System, Audio System and Projection System.

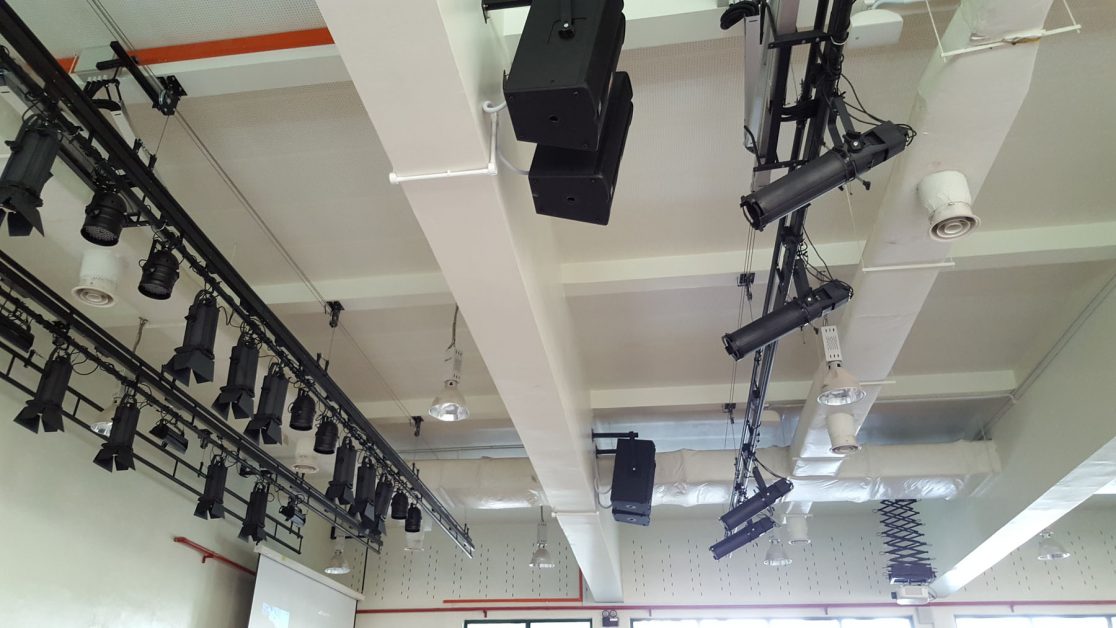

LED Stage Lighting System consist of LED Fresnel, LED Profile, LED Cyclorama and LED Par Light. All LED lighting is from Weinas. No dimmer required as we are installing LED spotlight but we added DMX distributor to distribute DMX signal across the stage.

Zero 88 Jester ML24 a programmable Lighting Console to control all fixtures.

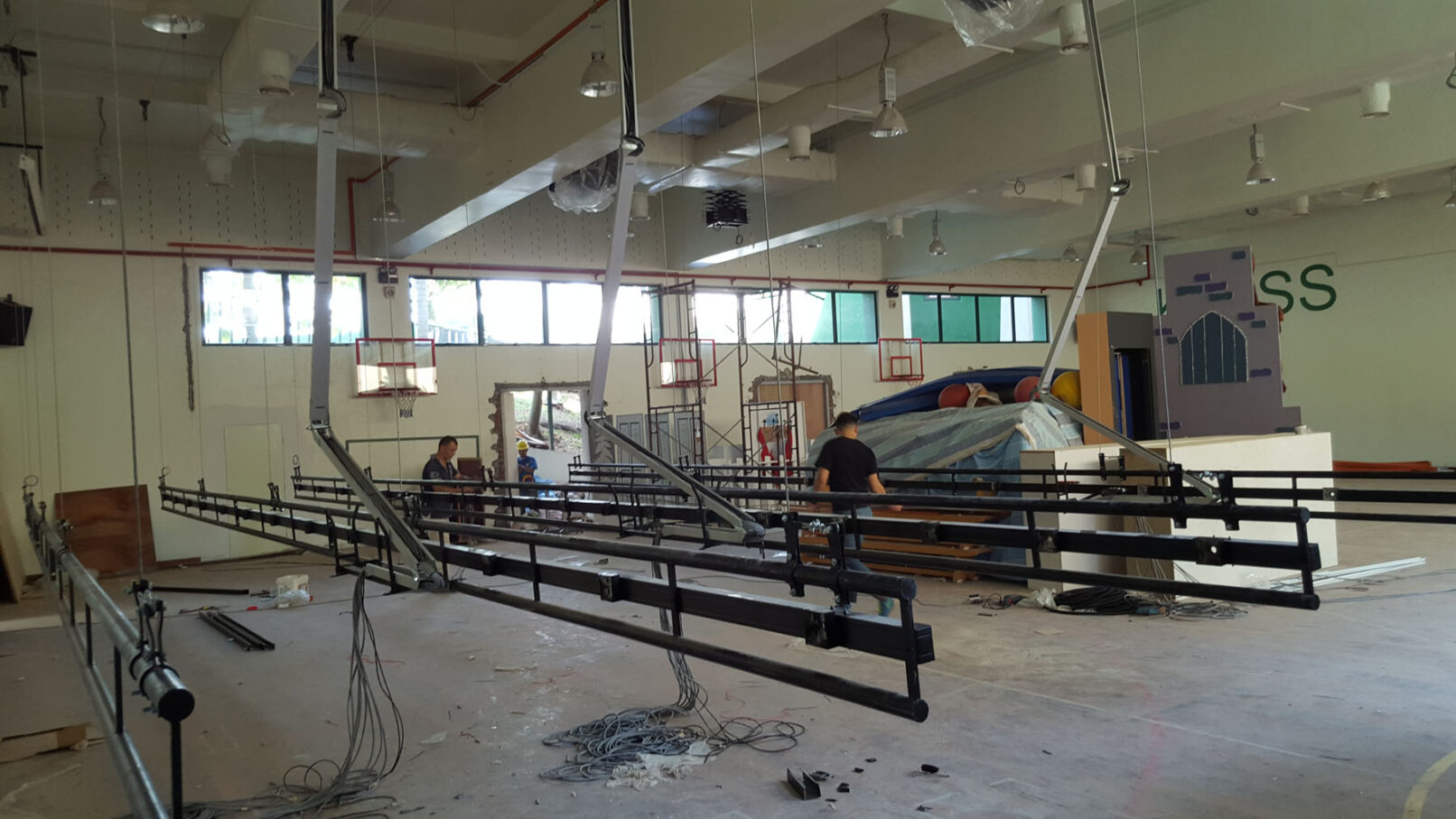

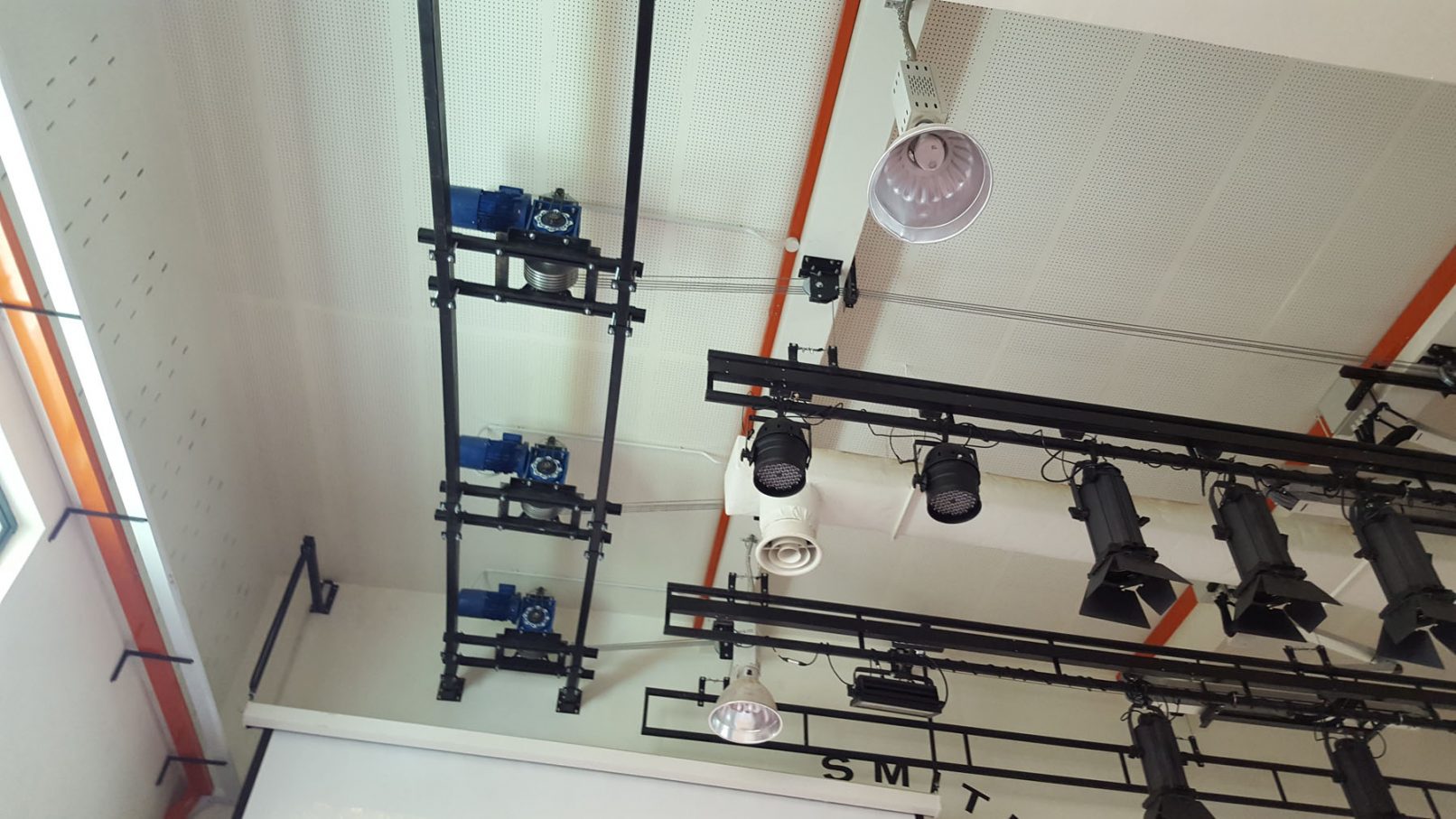

All lighting barrel is equipped with Motorised system to allow the operator to bring down the Lighting Bar for maintenance or adjust the lighting setting.

To complete the installation we also supply 4 nos of EV 15″ 800W Loudspeaker and supported by 30W Coaxial Ceiling Speaker. Two sets of Panasonic Projector with 2 nos of Draper Targa Motorised Screen were install left and right for the audience viewing.

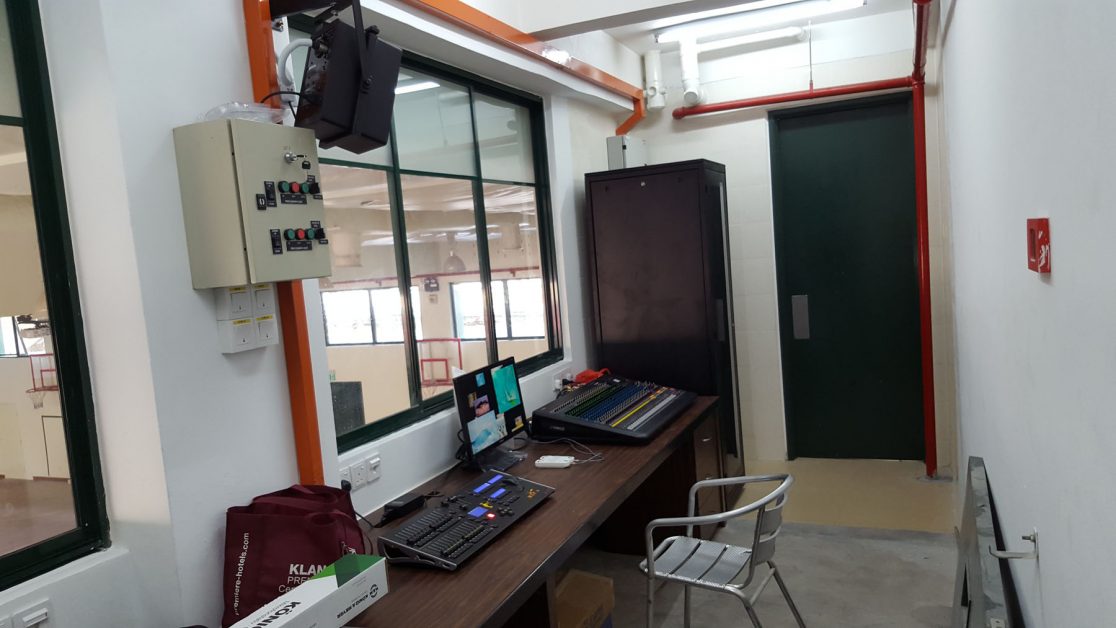

In the control room we supply 42U Equipment rack and Yamaha MGP Sound Mixer and Extron 8×4 HDMI Matrix Switcher to complete the installations and setting up.
